cadex.SheetMetal_BendRelief Class Reference

Describes a sheet metal bend relief. More...

Inherits global.SystemIDisposable.

Public Member Functions
	SheetMetal_BendRelief (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	SheetMetal_BendRelief ()
	Constructor.
	SheetMetal_BendRelief (double theWidth, double theLength)
	Creates bend relief with specified width and length.
double	Width ()
	Returns the bend relief width in mm .
void	SetWidth (double theWidth)
	Sets bend relief width in mm .
double	Length ()
	Returns the bend relief length in mm .
void	SetLength (double theLength)
	Sets bend relief length in mm .
cadex.ModelData.Shape	Shape ()
	Returns the bend relief shape.
void	SetShape (cadex.ModelData.Shape theShape)
	Sets bend relief shape.
bool	IsNull ()
	Returns true if the object is null.

Protected Member Functions
virtual void	Dispose (bool disposing)

Detailed Description

Describes a sheet metal bend relief.

Bend relief is a small incision cut into a piece of sheet metal to free the metal in between. It separates the material you want to be able to fold from the rest of the part.

Shape() method returns ModelData.Wire for this class.

Bend Relief

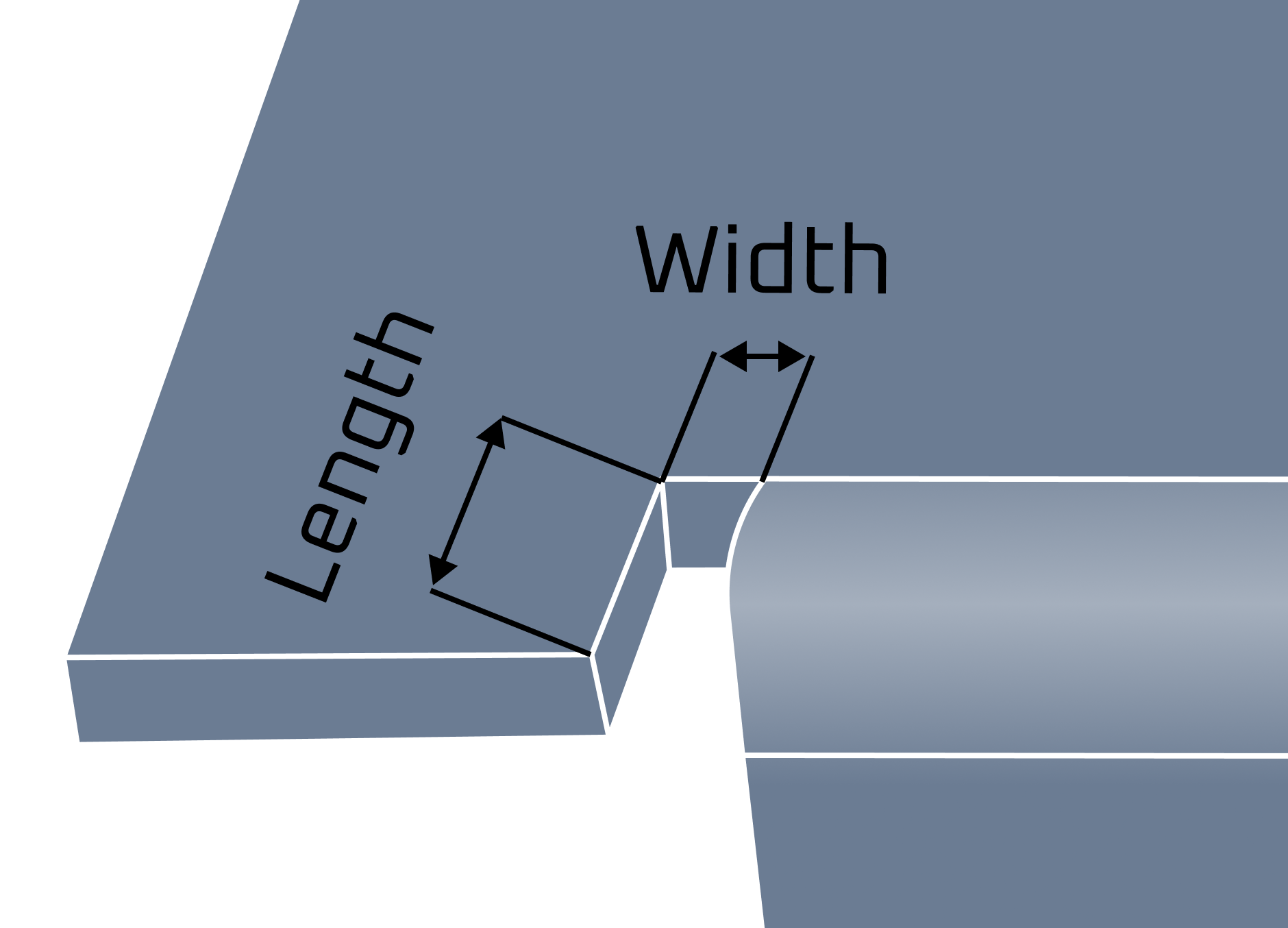

Bend reliefs have the following basic parameters: width in mm and length in mm.

Bend Relief parameters

Examples

sheet_metal/dfm_analyzer/Program.cs.

Constructor & Destructor Documentation

SheetMetal_BendRelief() [1/2]

cadex.SheetMetal_BendRelief.SheetMetal_BendRelief ( )

inline

Constructor.

SheetMetal_BendRelief() [2/2]

cadex.SheetMetal_BendRelief.SheetMetal_BendRelief ( double theWidth, double theLength )

inline

Creates bend relief with specified width and length.

Constructor.

Member Function Documentation

IsNull()

bool cadex.SheetMetal_BendRelief.IsNull ( )

inline

Returns true if the object is null.

Examples

sheet_metal/dfm_analyzer/Program.cs.

Length()

double cadex.SheetMetal_BendRelief.Length ( )

inline

Returns the bend relief length in mm .

See also

SetLength()

Examples

sheet_metal/dfm_analyzer/Program.cs.

SetLength()

void cadex.SheetMetal_BendRelief.SetLength ( double theLength )

inline

Sets bend relief length in mm .

The value must be more than zero, otherwise nothing happens.

See also

Length()

SetShape()

void cadex.SheetMetal_BendRelief.SetShape ( cadex.ModelData.Shape theShape )

inline

Sets bend relief shape.

The shape must be not null, otherwise nothing happens.

See also

Shape()

SetWidth()

void cadex.SheetMetal_BendRelief.SetWidth ( double theWidth )

inline

Sets bend relief width in mm .

The value must be more than zero, otherwise nothing happens.

See also

Width()

Shape()

cadex.ModelData.Shape cadex.SheetMetal_BendRelief.Shape ( )

inline

Returns the bend relief shape.

See also

SetShape()

Width()

double cadex.SheetMetal_BendRelief.Width ( )

inline

Returns the bend relief width in mm .

See also

SetWidth()

Examples

sheet_metal/dfm_analyzer/Program.cs.
