cadex.SheetMetal_Bridge Class Reference

Describes a sheet metal bridge feature. More...

Inheritance diagram for cadex.SheetMetal_Bridge:

Public Member Functions
	SheetMetal_Bridge (global::System.IntPtr cPtr, bool cMemoryOwn)
	SheetMetal_Bridge ()
	Constructor.
	SheetMetal_Bridge (double theDepth, double theLength)
	Creates bridge with specified depth and length.
double	Depth ()
	Returns the bridge depth in mm .
void	SetDepth (double theDepth)
	Sets bridge depth in mm .
double	Length ()
	Returns the bridge length in mm .
void	SetLength (double theLength)
	Sets bridge length in mm .
Public Member Functions inherited from cadex.MTKBase_ShapeFeature
	MTKBase_ShapeFeature (global::System.IntPtr cPtr, bool cMemoryOwn)
	MTKBase_ShapeFeature ()
	Constructor.
	MTKBase_ShapeFeature (cadex.ModelData.Shape theShape)
	Creates a feature from a ModelData.Shape object.
cadex.ModelData.Shape	Shape ()
	Returns shape of the feature.
void	SetShape (cadex.ModelData.Shape theShape)
	Sets shape of the feature.
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
	Resets reference to implementation object.
bool	IsNull ()
	Returns true if the object is nullified.
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a bridge.
static new cadex.SheetMetal_Bridge	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.MTKBase_ShapeFeature
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a shape feature.
static cadex.MTKBase_ShapeFeature	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes a sheet metal bridge feature.

Bridges are cut on two sides and formed on two sides.

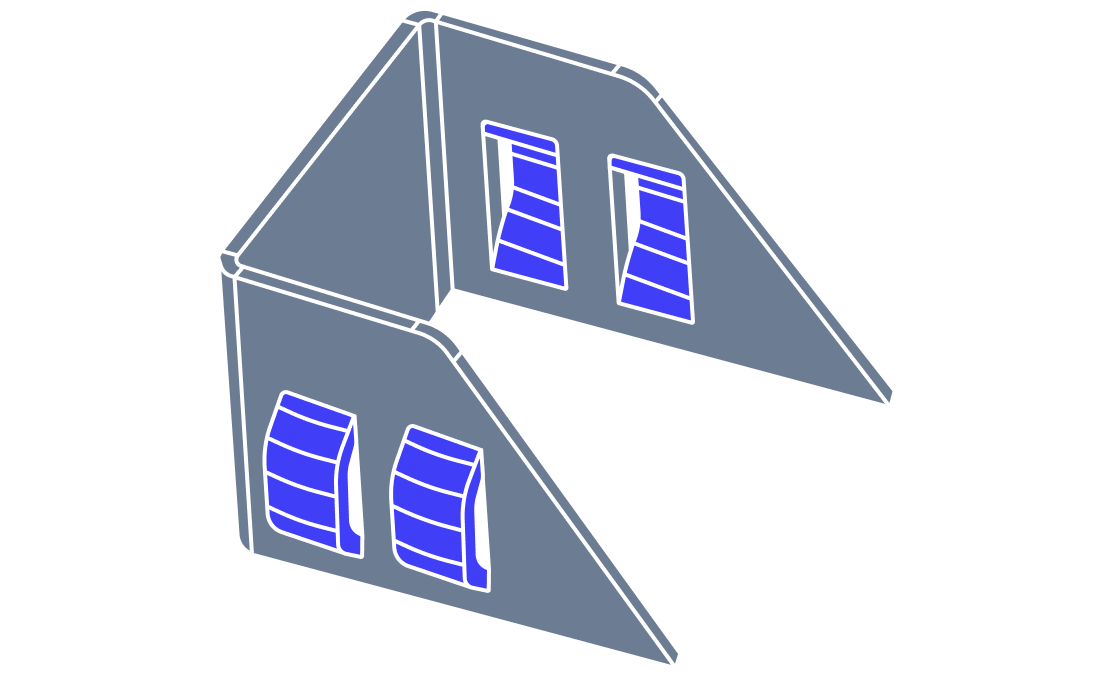

Lance type bridges and forms (blue) can be used for shear stops, locators, card guides, dividers, ventilation and wire tie downs.

Shape() method returns ModelData.Shell for this class.

Bridge

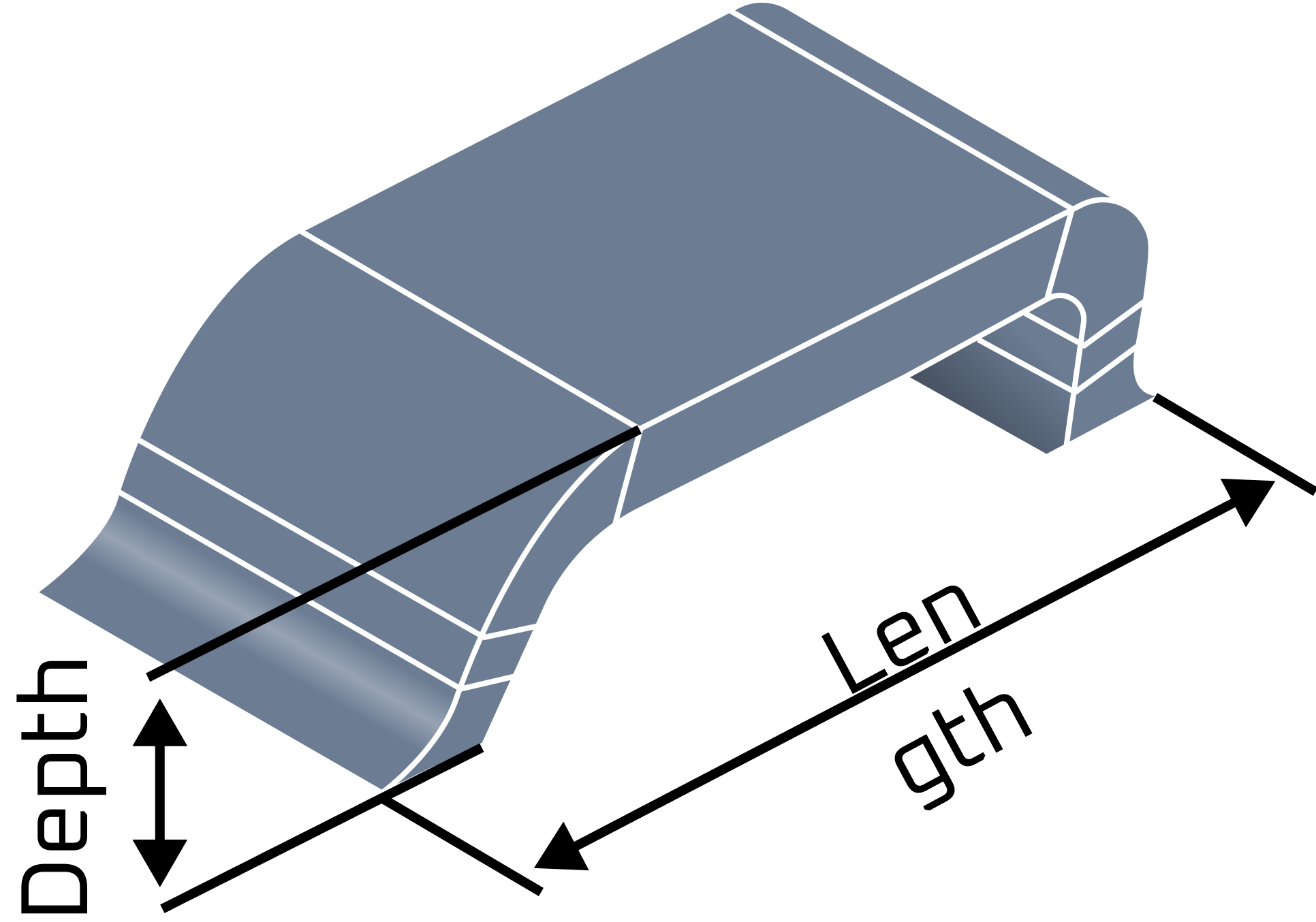

Bridges have the following basic parameters: depth in mm and length in mm.

Bridge parameters

Examples

sheet_metal/feature_recognizer/Program.cs, and sheet_metal/feature_recognizer/main.cxx.

Constructor & Destructor Documentation

SheetMetal_Bridge() [1/2]

cadex.SheetMetal_Bridge.SheetMetal_Bridge ( )

inline

Constructor.

SheetMetal_Bridge() [2/2]

cadex.SheetMetal_Bridge.SheetMetal_Bridge ( double theDepth, double theLength )

inline

Creates bridge with specified depth and length.

Constructor.

Member Function Documentation

CompareType()

static new bool cadex.SheetMetal_Bridge.CompareType ( cadex.MTKBase_Feature theFeature )

inlinestatic

Returns true if theFeature is a bridge.

Examples

sheet_metal/feature_recognizer/Program.cs.

Depth()

double cadex.SheetMetal_Bridge.Depth ( )

inline

Returns the bridge depth in mm .

See also

SetDepth()

Examples

sheet_metal/feature_recognizer/Program.cs.

Dispose()

override void cadex.SheetMetal_Bridge.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.MTKBase_ShapeFeature.

Length()

double cadex.SheetMetal_Bridge.Length ( )

inline

Returns the bridge length in mm .

See also

SetLength()

Examples

sheet_metal/feature_recognizer/Program.cs.

SetDepth()

void cadex.SheetMetal_Bridge.SetDepth ( double theDepth )

inline

Sets bridge depth in mm .

The value must be more than zero, otherwise nothing happens.

See also

Depth()

SetLength()

void cadex.SheetMetal_Bridge.SetLength ( double theLength )

inline

Sets bridge length in mm .

The value must be more than zero, otherwise nothing happens.

See also

Length()
