Describes a sheet metal curved bend feature. More...

Inheritance diagram for cadex.SheetMetal_CurvedBend:

Public Member Functions
	SheetMetal_CurvedBend (global::System.IntPtr cPtr, bool cMemoryOwn)

	SheetMetal_CurvedBend ()
	Constructor.

	SheetMetal_CurvedBend (double theRadius, double theAngle, double theWidth)
	Creates a curved bend with specified radius, angle and width.

Public Member Functions inherited from cadex.SheetMetal_Bend
	SheetMetal_Bend (global::System.IntPtr cPtr, bool cMemoryOwn)

	SheetMetal_Bend ()
	Constructor.

	SheetMetal_Bend (double theRadius, double theAngle, double theWidth)
	Creates a bend with specified radius, angle and width.

double	Radius ()
	Returns the bend radius in mm .

void	SetRadius (double theRadius)
	Sets bend radius in mm .

double	Angle ()
	Returns the bend angle in radians.

void	SetAngle (double theAngle)
	Sets bend angle in radians.

double	Width ()
	Returns the bend width in mm .

void	SetWidth (double theWidth)
	Sets bend width in mm .

double	Length ()
	Returns the length of resulting bend (not blank sheet metal model). Length value returns in mm .

Public Member Functions inherited from cadex.MTKBase_ShapeFeature
	MTKBase_ShapeFeature (global::System.IntPtr cPtr, bool cMemoryOwn)

	MTKBase_ShapeFeature ()
	Constructor.

	MTKBase_ShapeFeature (cadex.ModelData.Shape theShape)
	Creates a feature from a ModelData.Shape object.

cadex.ModelData.Shape	Shape ()
	Returns shape of the feature.

void	SetShape (cadex.ModelData.Shape theShape)
	Sets shape of the feature.

Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)

void	Dispose ()

	MTKBase_Feature ()
	Constructor.

void	Nullify ()
	Resets reference to implementation object.

bool	IsNull ()
	Returns true if the object is nullified.

bool	IsEqual (cadex.MTKBase_Feature theObject)

bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is an curved bend.

static new cadex.SheetMetal_CurvedBend	Cast (cadex.MTKBase_Feature theBase)

Static Public Member Functions inherited from cadex.SheetMetal_Bend
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a bend.

static new cadex.SheetMetal_Bend	Cast (cadex.MTKBase_Feature theBase)

Static Public Member Functions inherited from cadex.MTKBase_ShapeFeature
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a shape feature.

static cadex.MTKBase_ShapeFeature	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes a sheet metal curved bend feature.

A curved bend is obtained by bending sheet metal in 2 directions.

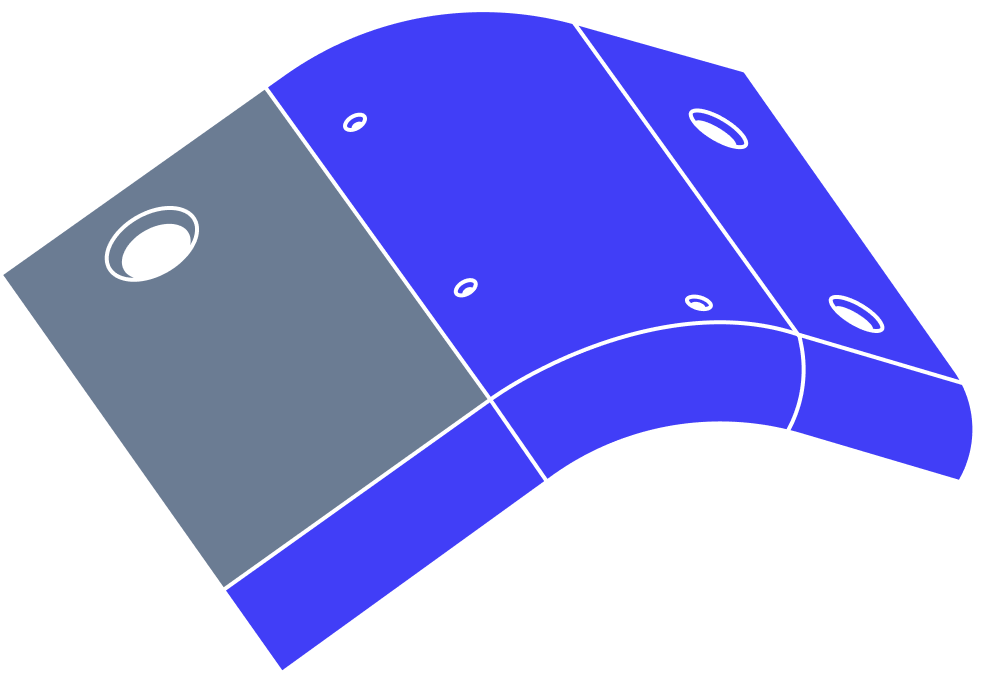

Curved bend

Examples: sheet_metal/feature_recognizer/Program.cs, and sheet_metal/feature_recognizer/main.cxx.

Constructor & Destructor Documentation

◆ SheetMetal_CurvedBend() [1/2]

cadex.SheetMetal_CurvedBend.SheetMetal_CurvedBend ( )

inline

Constructor.

◆ SheetMetal_CurvedBend() [2/2]

cadex.SheetMetal_CurvedBend.SheetMetal_CurvedBend	(	double	theRadius,
		double	theAngle,
		double	theWidth )

inline

Creates a curved bend with specified radius, angle and width.

Constructor.

Member Function Documentation

◆ CompareType()

static new bool cadex.SheetMetal_CurvedBend.CompareType ( cadex.MTKBase_Feature theFeature )

inlinestatic

Returns true if theFeature is an curved bend.

Examples: sheet_metal/feature_recognizer/Program.cs.

◆ Dispose()

override void cadex.SheetMetal_CurvedBend.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.SheetMetal_Bend.
