Describes a sheet metal Hem bend feature. More...

Inheritance diagram for cadex.SheetMetal_HemBend:

Public Member Functions
	SheetMetal_HemBend (global::System.IntPtr cPtr, bool cMemoryOwn)

	SheetMetal_HemBend (double theRadius, double theAngle, double theWidth)
	Creates a hem bend with specified radius, angle and width.

cadex.SheetMetal_HemBendType	Type ()
	Returns a hem bend type.

void	SetType (cadex.SheetMetal_HemBendType theType)
	Sets a hem bend type.

Public Member Functions inherited from cadex.SheetMetal_Bend
	SheetMetal_Bend (global::System.IntPtr cPtr, bool cMemoryOwn)

	SheetMetal_Bend ()
	Constructor.

	SheetMetal_Bend (double theRadius, double theAngle, double theWidth)
	Creates a bend with specified radius, angle and width.

double	Radius ()
	Returns the bend radius in mm .

void	SetRadius (double theRadius)
	Sets bend radius in mm .

double	Angle ()
	Returns the bend angle in radians.

void	SetAngle (double theAngle)
	Sets bend angle in radians.

double	Width ()
	Returns the bend width in mm .

void	SetWidth (double theWidth)
	Sets bend width in mm .

double	Length ()
	Returns the length of resulting bend (not blank sheet metal model). Length value returns in mm .

Public Member Functions inherited from cadex.MTKBase_ShapeFeature
	MTKBase_ShapeFeature (global::System.IntPtr cPtr, bool cMemoryOwn)

	MTKBase_ShapeFeature ()
	Constructor.

	MTKBase_ShapeFeature (cadex.ModelData.Shape theShape)
	Creates a feature from a ModelData.Shape object.

cadex.ModelData.Shape	Shape ()
	Returns shape of the feature.

void	SetShape (cadex.ModelData.Shape theShape)
	Sets shape of the feature.

Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)

void	Dispose ()

	MTKBase_Feature ()
	Constructor.

void	Nullify ()
	Resets reference to implementation object.

bool	IsNull ()
	Returns true if the object is nullified.

bool	IsEqual (cadex.MTKBase_Feature theObject)

bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is an hem bend.

static new cadex.SheetMetal_HemBend	Cast (cadex.MTKBase_Feature theBase)

Static Public Member Functions inherited from cadex.SheetMetal_Bend
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a bend.

static new cadex.SheetMetal_Bend	Cast (cadex.MTKBase_Feature theBase)

Static Public Member Functions inherited from cadex.MTKBase_ShapeFeature
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a shape feature.

static cadex.MTKBase_ShapeFeature	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes a sheet metal Hem bend feature.

Hem bend is a result of hemming process in which a sheet metal edge is folded back on itself.

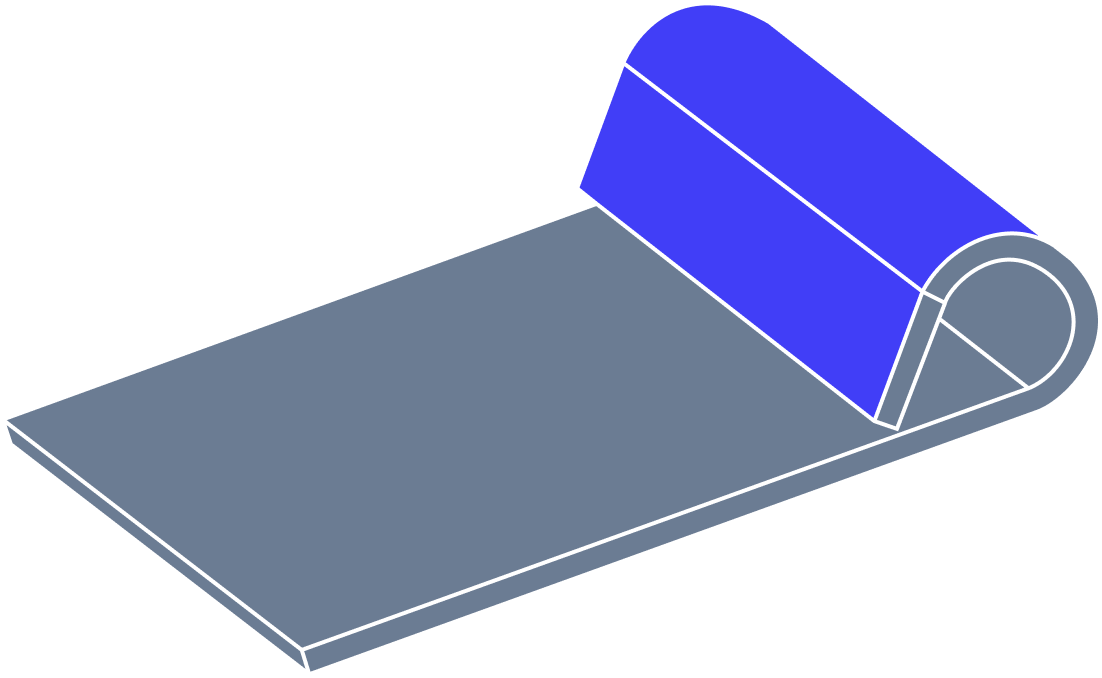

Hem bend

Hem Bend types

MTK supports hem bend types (defined by the SheetMetal_HemBendType enumeration) defined in the following table:

Flattened hem bend	The part of the edge that bends sits completely flush over the rest of the metal sheet. The angle between the returning flange and the sheet metal is 180 degrees.

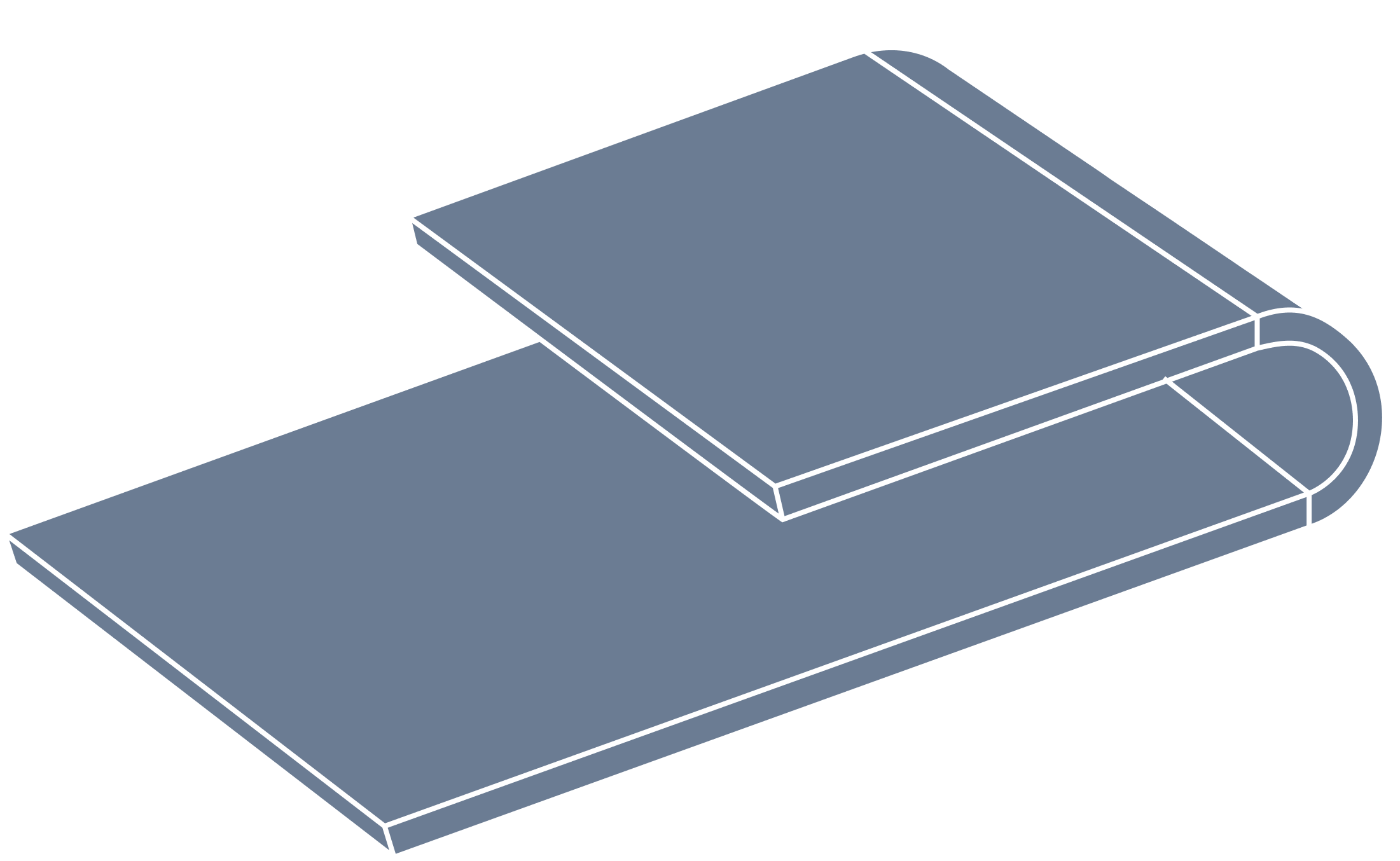

Open hem bend	The returning flange is folded over the sheet metal but there remains an air pocket between the two. The bend angle is 180 degrees.
Teardrop hem bend	The returning flange is bent beyond 180 degrees. The resulting shape resembles a teardrop.
Rope hem bend	The returning flange at a bent of more than 180 degrees. Once the hem achieves the shape of an open hem, the returning flange is pressed onto the part surface through a flattening die.

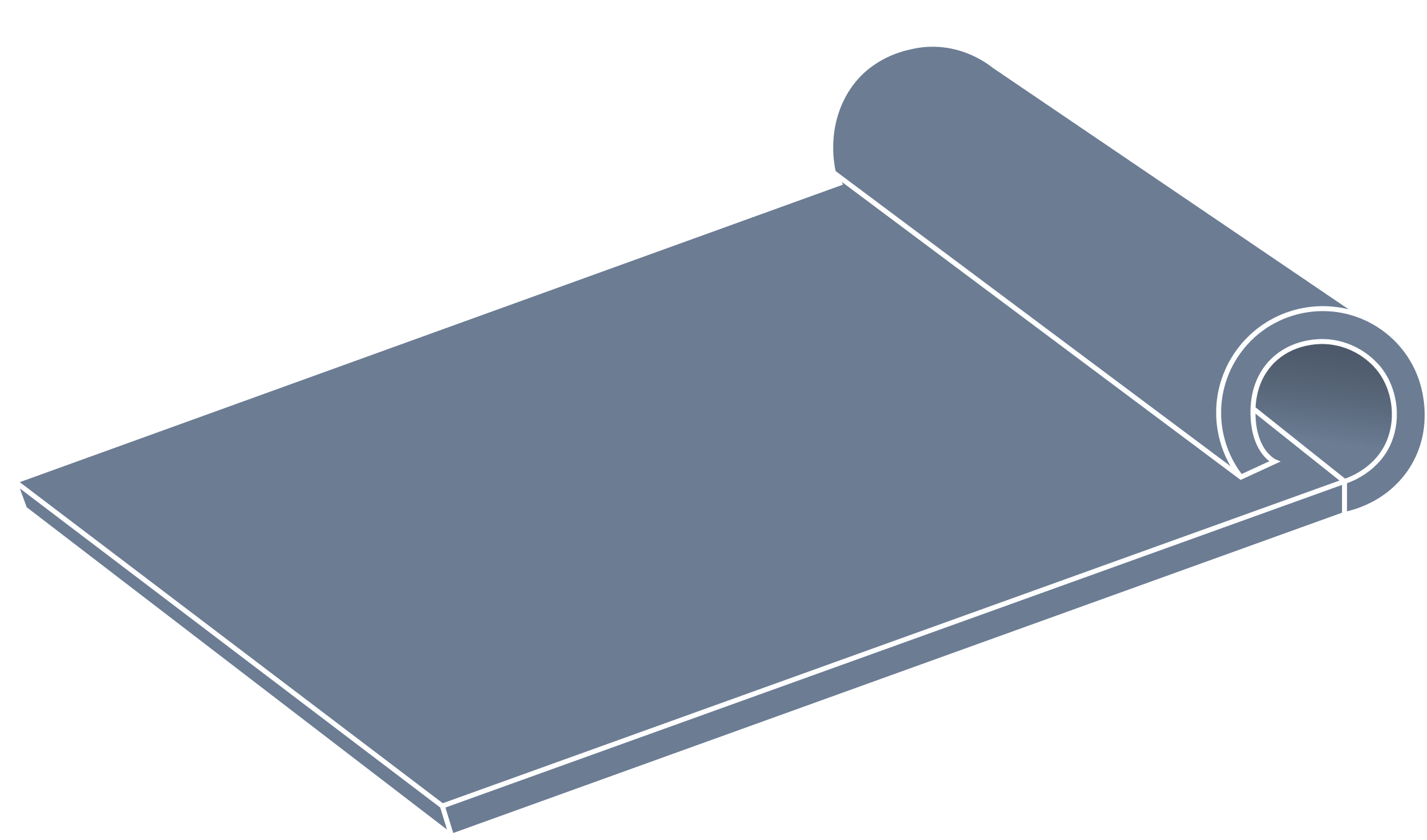

Rolled hem bend	The bent portion of the sheet metal is tucked back into itself. This creates smooth round edges all around for holding the part from the hemmed edges.
