cadex.SheetMetal_Notch Class Reference

Describes a sheet metal notch. More...

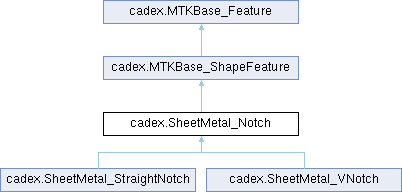

Inheritance diagram for cadex.SheetMetal_Notch:

Public Member Functions
	SheetMetal_Notch (global::System.IntPtr cPtr, bool cMemoryOwn)
	SheetMetal_Notch ()
	Constructor.
	SheetMetal_Notch (double theWidth, double theLength)
	Creates notch with specified width and length.
double	Width ()
	Returns the notch width in mm .
void	SetWidth (double theWidth)
	Sets notch width in mm .
double	Length ()
	Returns the notch length in mm .
void	SetLength (double theLength)
	Sets notch length in mm .
bool	IsAtCorner ()
	Returns true if notch is placed at the corner of sheet and false otherwise.
void	SetIsAtCorner (bool theIsAtCorner)
	Sets flag determining whether notch is at the corner of sheet.
Public Member Functions inherited from cadex.MTKBase_ShapeFeature
	MTKBase_ShapeFeature (global::System.IntPtr cPtr, bool cMemoryOwn)
	MTKBase_ShapeFeature ()
	Constructor.
	MTKBase_ShapeFeature (cadex.ModelData.Shape theShape)
	Creates a feature from a ModelData.Shape object.
cadex.ModelData.Shape	Shape ()
	Returns shape of the feature.
void	SetShape (cadex.ModelData.Shape theShape)
	Sets shape of the feature.
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
	Resets reference to implementation object.
bool	IsNull ()
	Returns true if the object is nullified.
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a notch.
static new cadex.SheetMetal_Notch	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.MTKBase_ShapeFeature
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a shape feature.
static cadex.MTKBase_ShapeFeature	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes a sheet metal notch.

Notch is the intrusion or cutting the section of the sheet metal at the edges. Notching is a shearing-related metalworking process that involves the use of a punch press to selectively cut unwanted material.

Shape() method returns ModelData.Wire for this class.

Notches

Notches have the following basic parameters: width in mm and length in mm.

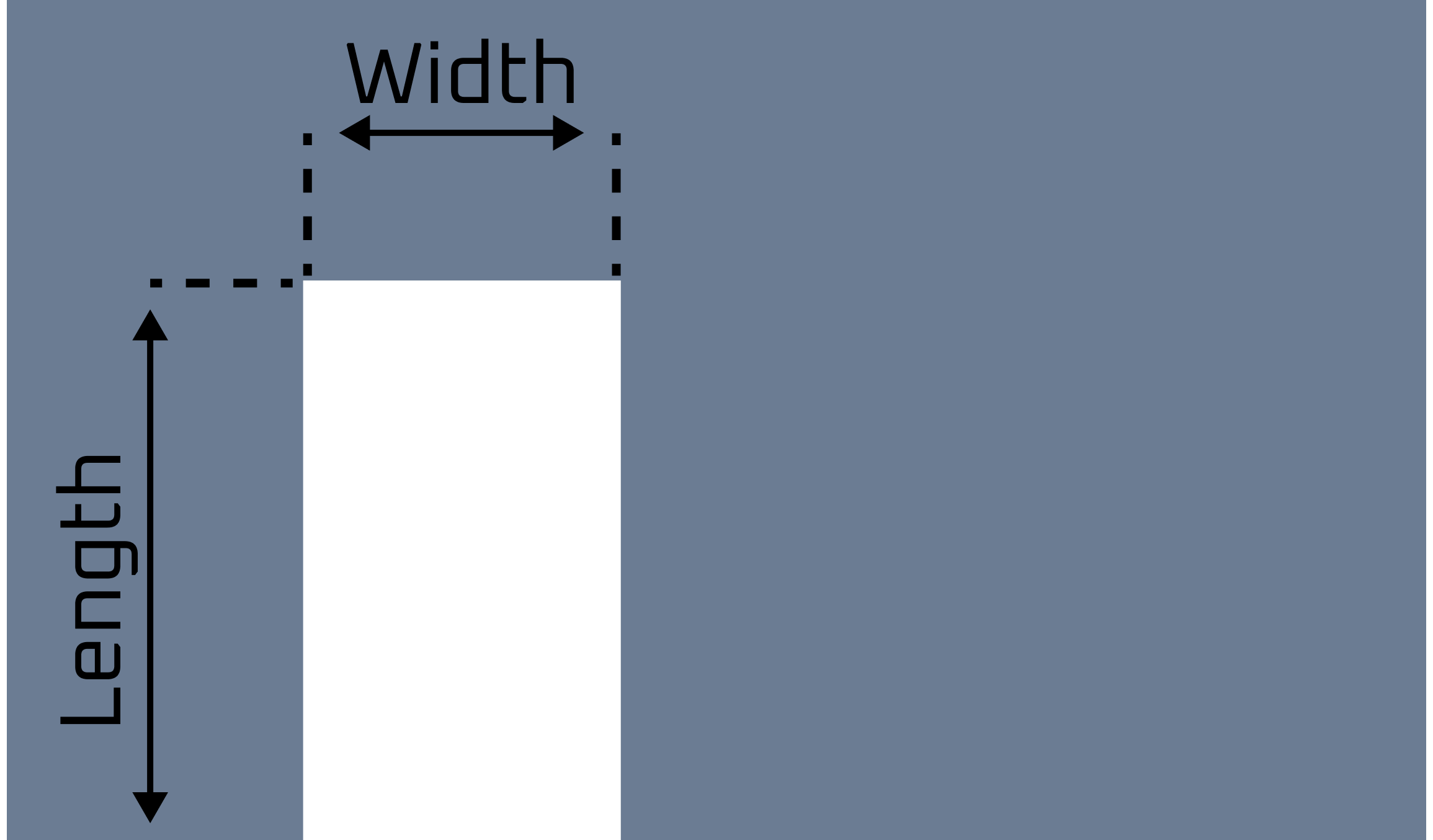

Notch parameters

Examples

sheet_metal/feature_recognizer/Program.cs, and sheet_metal/feature_recognizer/main.cxx.

Constructor & Destructor Documentation

SheetMetal_Notch() [1/2]

cadex.SheetMetal_Notch.SheetMetal_Notch ( )

inline

Constructor.

SheetMetal_Notch() [2/2]

cadex.SheetMetal_Notch.SheetMetal_Notch ( double theWidth, double theLength )

inline

Creates notch with specified width and length.

Constructor.

Member Function Documentation

CompareType()

static new bool cadex.SheetMetal_Notch.CompareType ( cadex.MTKBase_Feature theFeature )

inlinestatic

Returns true if theFeature is a notch.

Examples

sheet_metal/feature_recognizer/Program.cs.

Dispose()

override void cadex.SheetMetal_Notch.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.MTKBase_ShapeFeature.

IsAtCorner()

bool cadex.SheetMetal_Notch.IsAtCorner ( )

inline

Returns true if notch is placed at the corner of sheet and false otherwise.

Notch at the corner of sheet

See also

SetIsAtCorner()

Length()

double cadex.SheetMetal_Notch.Length ( )

inline

Returns the notch length in mm .

See also

SetLength()

Examples

sheet_metal/feature_recognizer/Program.cs.

SetIsAtCorner()

void cadex.SheetMetal_Notch.SetIsAtCorner ( bool theIsAtCorner )

inline

Sets flag determining whether notch is at the corner of sheet.

See also

IsAtCorner()

SetLength()

void cadex.SheetMetal_Notch.SetLength ( double theLength )

inline

Sets notch length in mm .

The value must be more than zero, otherwise nothing happens.

See also

Length()

SetWidth()

void cadex.SheetMetal_Notch.SetWidth ( double theWidth )

inline

Sets notch width in mm .

The value must be more than zero, otherwise nothing happens.

See also

Width()

Width()

double cadex.SheetMetal_Notch.Width ( )

inline

Returns the notch width in mm .

See also

SetWidth()
