cadex.SheetMetal_Tab Class Reference

Describes a sheet metal tab. More...

Inheritance diagram for cadex.SheetMetal_Tab:

Public Member Functions
	SheetMetal_Tab (global::System.IntPtr cPtr, bool cMemoryOwn)
	SheetMetal_Tab ()
	Constructor.
	SheetMetal_Tab (double theWidth, double theLength)
	Constructor.
double	Width ()
	Returns the tab width in mm .
void	SetWidth (double theWidth)
	Sets tab width in mm .
double	Length ()
	Returns the tab length in mm .
void	SetLength (double theLength)
	Sets tab length in mm .
Public Member Functions inherited from cadex.MTKBase_ShapeFeature
	MTKBase_ShapeFeature (global::System.IntPtr cPtr, bool cMemoryOwn)
	MTKBase_ShapeFeature ()
	Constructor.
	MTKBase_ShapeFeature (cadex.ModelData.Shape theShape)
	Creates a feature from a ModelData.Shape object.
cadex.ModelData.Shape	Shape ()
	Returns shape of the feature.
void	SetShape (cadex.ModelData.Shape theShape)
	Sets shape of the feature.
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
	Resets reference to implementation object.
bool	IsNull ()
	Returns true if the object is nullified.
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a tab.
static new cadex.SheetMetal_Tab	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.MTKBase_ShapeFeature
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a shape feature.
static cadex.MTKBase_ShapeFeature	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes a sheet metal tab.

Tab is the rectangular ledge for the face. They are often used for fitting together several pieces to create the precise mate during assembly.

Shape() method returns ModelData.Wire for this class.

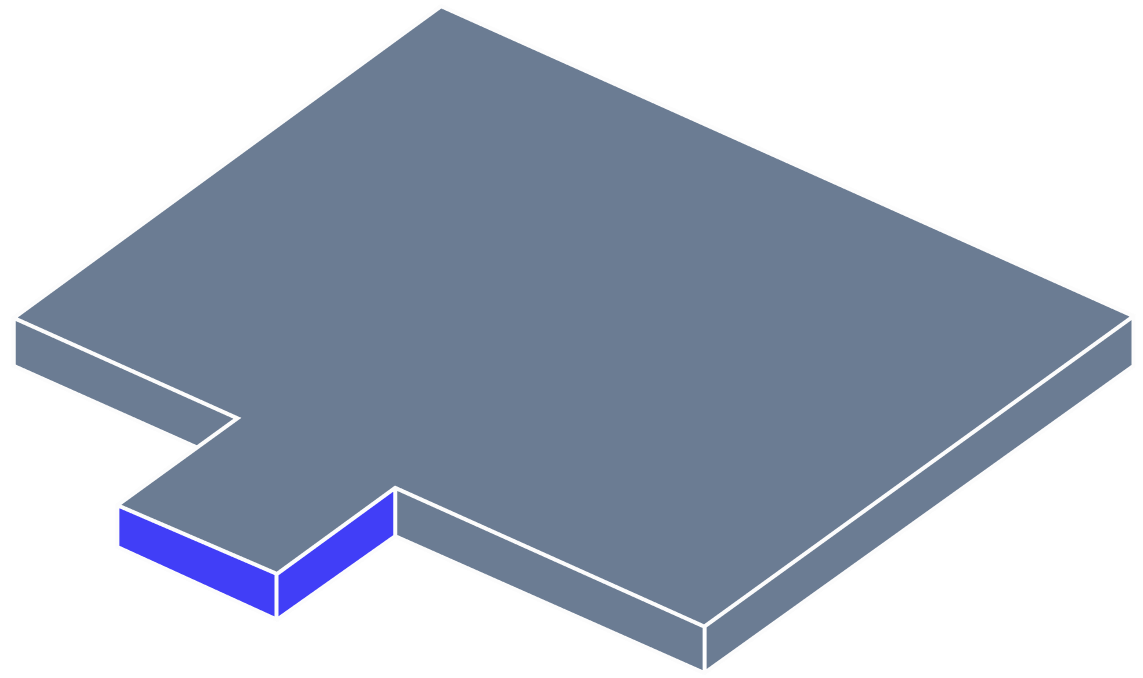

Tab

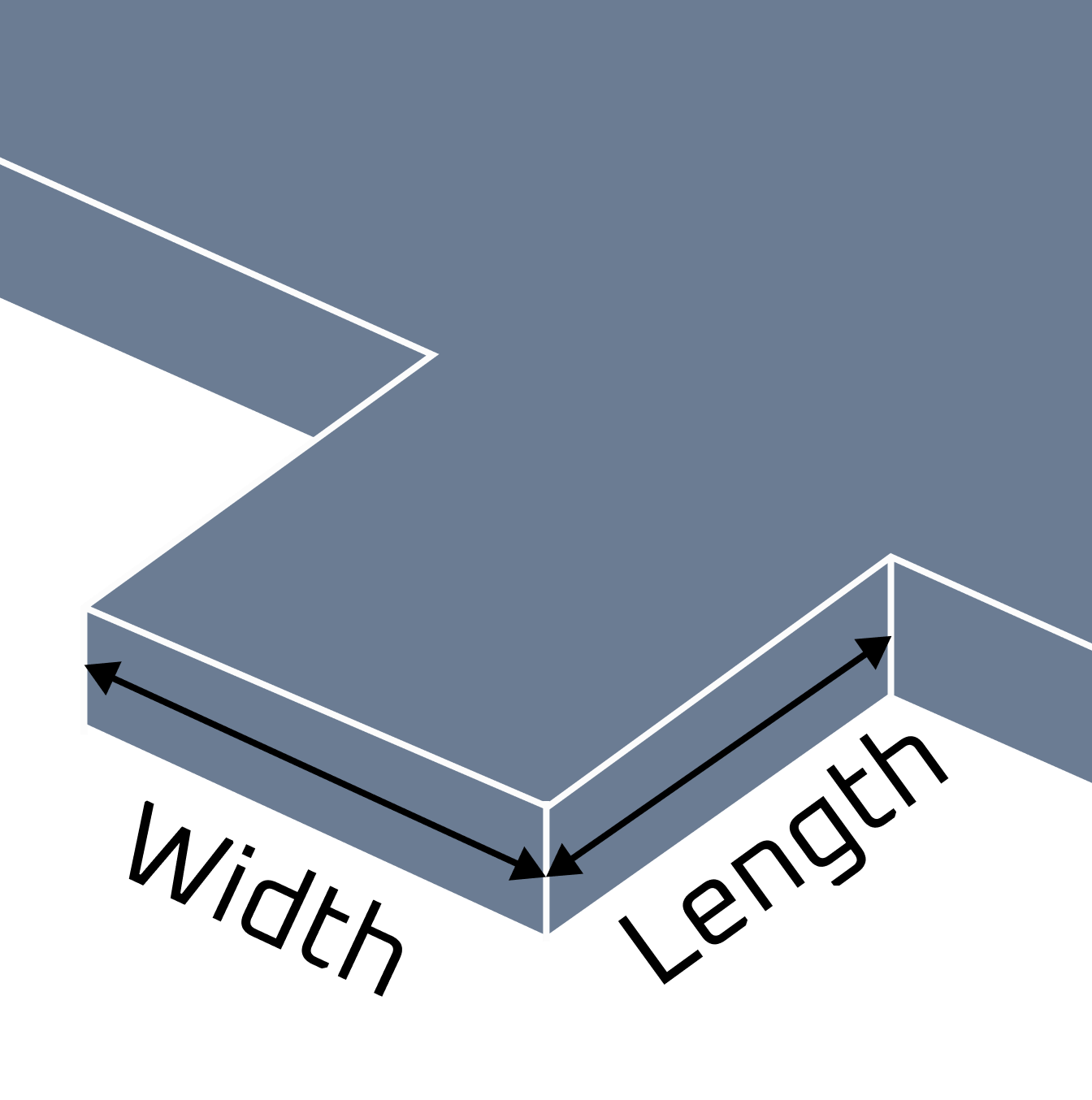

Tabs have the following basic parameters: width in mm and length in mm.

Tab parameters

Examples

sheet_metal/feature_recognizer/Program.cs, and sheet_metal/feature_recognizer/main.cxx.

Constructor & Destructor Documentation

SheetMetal_Tab() [1/2]

cadex.SheetMetal_Tab.SheetMetal_Tab ( )

inline

Constructor.

SheetMetal_Tab() [2/2]

cadex.SheetMetal_Tab.SheetMetal_Tab ( double theWidth, double theLength )

inline

Constructor.

Creates tab with specified width and depth.

Member Function Documentation

CompareType()

static new bool cadex.SheetMetal_Tab.CompareType ( cadex.MTKBase_Feature theFeature )

inlinestatic

Returns true if theFeature is a tab.

Examples

sheet_metal/feature_recognizer/Program.cs.

Dispose()

override void cadex.SheetMetal_Tab.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.MTKBase_ShapeFeature.

Length()

double cadex.SheetMetal_Tab.Length ( )

inline

Returns the tab length in mm .

See also

SetLength()

Examples

sheet_metal/feature_recognizer/Program.cs.

SetLength()

void cadex.SheetMetal_Tab.SetLength ( double theLength )

inline

Sets tab length in mm .

The value must be more than zero, otherwise nothing happens.

See also

Length()

SetWidth()

void cadex.SheetMetal_Tab.SetWidth ( double theWidth )

inline

Sets tab width in mm .

The value must be more than zero, otherwise nothing happens.

See also

Width()

Width()

double cadex.SheetMetal_Tab.Width ( )

inline

Returns the tab width in mm .

See also

SetWidth()

Examples

sheet_metal/feature_recognizer/Program.cs.
