cadex.SheetMetal_VNotch Class Reference

Describes a sheet metal V-notch. More...

Inheritance diagram for cadex.SheetMetal_VNotch:

Public Member Functions
	SheetMetal_VNotch (global::System.IntPtr cPtr, bool cMemoryOwn)
	SheetMetal_VNotch ()
	Constructor.
	SheetMetal_VNotch (double theWidth, double theLength, double theAngle)
	Creates notch with specified width, length and angle.
double	Angle ()
	Returns V notch angle in rad.
void	SetAngle (double theWidth)
Public Member Functions inherited from cadex.SheetMetal_Notch
	SheetMetal_Notch (global::System.IntPtr cPtr, bool cMemoryOwn)
	SheetMetal_Notch ()
	Constructor.
	SheetMetal_Notch (double theWidth, double theLength)
	Creates notch with specified width and length.
double	Width ()
	Returns the notch width in mm .
void	SetWidth (double theWidth)
	Sets notch width in mm .
double	Length ()
	Returns the notch length in mm .
void	SetLength (double theLength)
	Sets notch length in mm .
bool	IsAtCorner ()
	Returns true if notch is placed at the corner of sheet and false otherwise.
void	SetIsAtCorner (bool theIsAtCorner)
	Sets flag determining whether notch is at the corner of sheet.
Public Member Functions inherited from cadex.MTKBase_ShapeFeature
	MTKBase_ShapeFeature (global::System.IntPtr cPtr, bool cMemoryOwn)
	MTKBase_ShapeFeature ()
	Constructor.
	MTKBase_ShapeFeature (cadex.ModelData.Shape theShape)
	Creates a feature from a ModelData.Shape object.
cadex.ModelData.Shape	Shape ()
	Returns shape of the feature.
void	SetShape (cadex.ModelData.Shape theShape)
	Sets shape of the feature.
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
	Resets reference to implementation object.
bool	IsNull ()
	Returns true if the object is nullified.
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a V notch.
static new cadex.SheetMetal_VNotch	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.SheetMetal_Notch
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a notch.
static new cadex.SheetMetal_Notch	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.MTKBase_ShapeFeature
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a shape feature.
static cadex.MTKBase_ShapeFeature	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes a sheet metal V-notch.

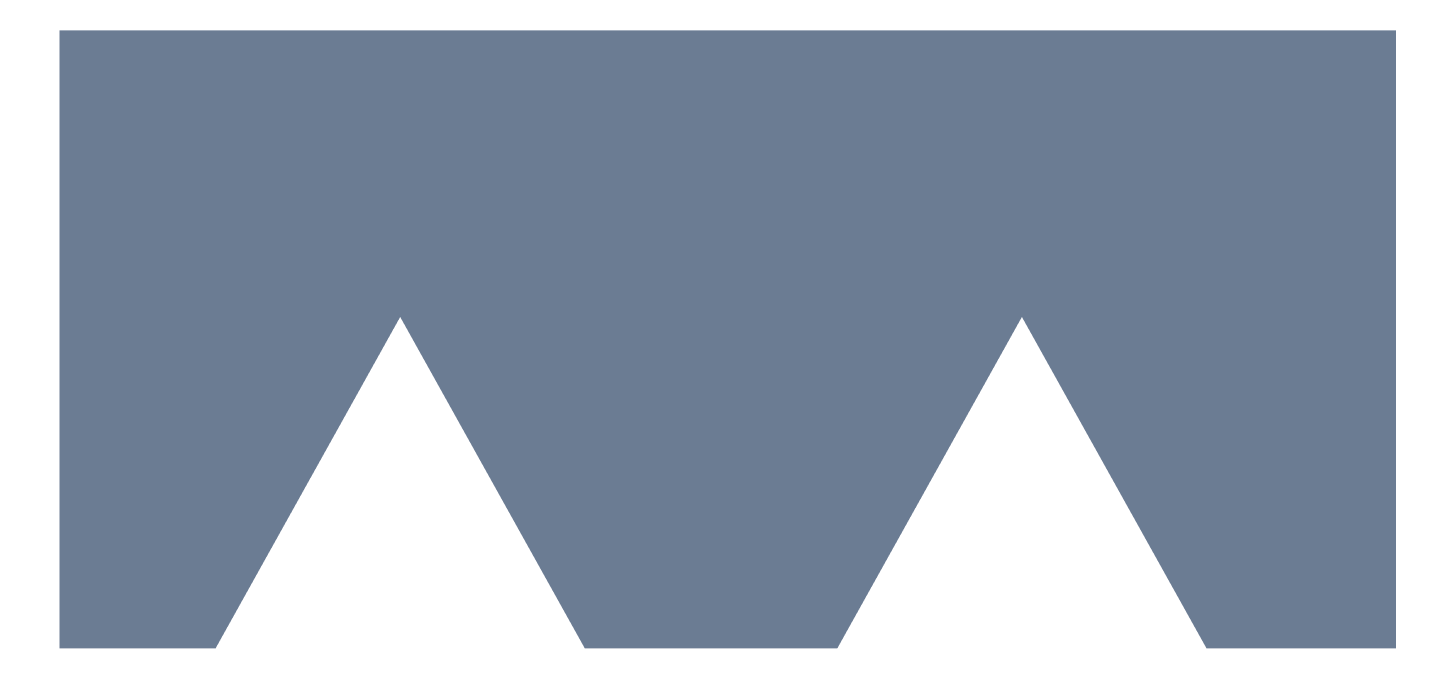

V-notch is the V-shape cut from the edge of the sheet.

V-notch

Examples

sheet_metal/feature_recognizer/Program.cs, and sheet_metal/feature_recognizer/main.cxx.

Constructor & Destructor Documentation

SheetMetal_VNotch() [1/2]

cadex.SheetMetal_VNotch.SheetMetal_VNotch ( )

inline

Constructor.

SheetMetal_VNotch() [2/2]

cadex.SheetMetal_VNotch.SheetMetal_VNotch ( double theWidth, double theLength, double theAngle )

inline

Creates notch with specified width, length and angle.

Constructor.

Member Function Documentation

Angle()

double cadex.SheetMetal_VNotch.Angle ( )

inline

Returns V notch angle in rad.

See also

SetAngle()

Examples

sheet_metal/feature_recognizer/Program.cs.

CompareType()

static new bool cadex.SheetMetal_VNotch.CompareType ( cadex.MTKBase_Feature theFeature )

inlinestatic

Returns true if theFeature is a V notch.

Examples

sheet_metal/feature_recognizer/Program.cs.

Dispose()

override void cadex.SheetMetal_VNotch.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.SheetMetal_Notch.
