cadex.DFMMachining_NarrowRegionInPocketIssue Class Reference

Described the Narrow Pocket minimum size issue found during DFM analysis for Machining Milling operations. More...

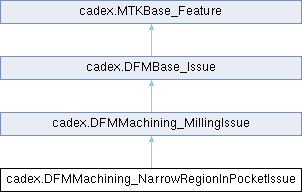

Inheritance diagram for cadex.DFMMachining_NarrowRegionInPocketIssue:

Public Member Functions
	DFMMachining_NarrowRegionInPocketIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
	DFMMachining_NarrowRegionInPocketIssue ()
	Constructor.
double	ExpectedMinRegionSize ()
void	SetExpectedMinRegionSize (double theValue)
double	ActualRegionSize ()
void	SetActualRegionSize (double theDistance)
cadex.Machining_Pocket	Pocket ()
void	SetPocket (cadex.Machining_Pocket thePocket)
cadex.ModelData.Shell	NarrowRegionSidewall ()
void	SetNarrowRegionSidewall (cadex.ModelData.Shell theNarrowRegionSidewall)
cadex.ModelData.Shell	InnerFeature ()
void	SetInnerFeature (cadex.ModelData.Shell theInnerFeature)
Public Member Functions inherited from cadex.DFMMachining_MillingIssue
	DFMMachining_MillingIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
bool	IsNull ()
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM narrow regions distance issue.
static new cadex.DFMMachining_NarrowRegionInPocketIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMMachining_MillingIssue
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theIssue is a DFM machining milling issue.
static new cadex.DFMMachining_MillingIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.
static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Described the Narrow Pocket minimum size issue found during DFM analysis for Machining Milling operations.

The size of the milling cutter is constrained by the smallest distance between the faces of the features. Small cutters are prone to breakage and chatter, and increase manufacturing time. It is recommended to have the minimum distance between surfaces to be ExpectedDistance().

Contains size that fails the following condition:

\[ \large S_p \geq S_m \]

\[ \begin{aligned} & \small S_p - \text{actual pocket size} \\ & \small S_m - \text{expected minimum pocket size} \end{aligned} \]

See also

DFMMachining_Analyzer, DFMMachining_MillingAnalyzerParameters.MinRegionInPocketSize()

Examples

machining/dfm_analyzer/Program.cs, and machining/dfm_analyzer/main.cxx.

Member Function Documentation

ActualRegionSize()

double cadex.DFMMachining_NarrowRegionInPocketIssue.ActualRegionSize ( )

inline

Returns the actual minimum size between features in a pocket.

See also

SetActualRegionSize()

Examples

machining/dfm_analyzer/Program.cs.

Dispose()

override void cadex.DFMMachining_NarrowRegionInPocketIssue.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.DFMMachining_MillingIssue.

ExpectedMinRegionSize()

double cadex.DFMMachining_NarrowRegionInPocketIssue.ExpectedMinRegionSize ( )

inline

Returns the expected minimum distance between features in a pocket.

See also

SetExpectedMinRegionSize()

Examples

machining/dfm_analyzer/Program.cs.

InnerFeature()

cadex.ModelData.Shell cadex.DFMMachining_NarrowRegionInPocketIssue.InnerFeature ( )

inline

Returns inner feature shell.

See also

SetInnerFeature()

NarrowRegionSidewall()

cadex.ModelData.Shell cadex.DFMMachining_NarrowRegionInPocketIssue.NarrowRegionSidewall ( )

inline

Returns a shell with narrow region size to inner feature.

See also

SetNarrowRegionSidewall()

Pocket()

cadex.Machining_Pocket cadex.DFMMachining_NarrowRegionInPocketIssue.Pocket ( )

inline

Returns pocket that contains features with an issue.

See also

SetPocket()

SetActualRegionSize()

void cadex.DFMMachining_NarrowRegionInPocketIssue.SetActualRegionSize ( double theDistance )

inline

Set actual size between features in a pocket in mm. The value should be greater 0.

See also

ActualRegionSize()

SetExpectedMinRegionSize()

void cadex.DFMMachining_NarrowRegionInPocketIssue.SetExpectedMinRegionSize ( double theValue )

inline

Set expected minimum size between features in a pocket. The value should be greater 0.

See also

ExpectedMinRegionSize()

SetInnerFeature()

void cadex.DFMMachining_NarrowRegionInPocketIssue.SetInnerFeature ( cadex.ModelData.Shell theInnerFeature )

inline

Set inner feature shell.

See also

InnerFeature()

SetNarrowRegionSidewall()

void cadex.DFMMachining_NarrowRegionInPocketIssue.SetNarrowRegionSidewall ( cadex.ModelData.Shell theNarrowRegionSidewall )

inline

Set shell with narrow region size to inner feature theNarrowRegionSidewall.

See also

NarrowRegionSidewall()

SetPocket()

void cadex.DFMMachining_NarrowRegionInPocketIssue.SetPocket ( cadex.Machining_Pocket thePocket )

inline

Set pocket that contains features with an issue.

See also

Pocket()
