Describes small distance detween holes issues found during sheet metal design analysis. More...

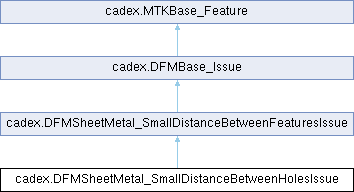

Inheritance diagram for cadex.DFMSheetMetal_SmallDistanceBetweenHolesIssue:

Public Member Functions
	DFMSheetMetal_SmallDistanceBetweenHolesIssue (global::System.IntPtr cPtr, bool cMemoryOwn)

	DFMSheetMetal_SmallDistanceBetweenHolesIssue ()
	Constructor.

	DFMSheetMetal_SmallDistanceBetweenHolesIssue (cadex.SheetMetal_Hole theFirstHole, cadex.SheetMetal_Hole theSecondFeature)

cadex.SheetMetal_Hole	FirstHole ()

void	SetFirstHole (cadex.SheetMetal_Hole theHole)

cadex.SheetMetal_Hole	SecondHole ()

void	SetSecondHole (cadex.SheetMetal_Hole theHole)

Public Member Functions inherited from cadex.DFMSheetMetal_SmallDistanceBetweenFeaturesIssue
	DFMSheetMetal_SmallDistanceBetweenFeaturesIssue (global::System.IntPtr cPtr, bool cMemoryOwn)

double	ExpectedMinDistanceBetweenFeaturesToSheetThicknessRatio ()

void	SetExpectedMinDistanceBetweenFeaturesToSheetThicknessRatio (double theRatio)

double	ExpectedMinDistanceBetweenFeatures ()

double	ActualDistanceBetweenFeatures ()

void	SetActualDistanceBetweenFeatures (double theDistance)

double	ActualSheetThickness ()

void	SetActualSheetThickness (double theThickness)

Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)

Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)

void	Dispose ()

	MTKBase_Feature ()
	Constructor.

void	Nullify ()

bool	IsNull ()

bool	IsEqual (cadex.MTKBase_Feature theObject)

bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a small distance between holes issue.

static new cadex.DFMSheetMetal_SmallDistanceBetweenHolesIssue	Cast (cadex.MTKBase_Feature theBase)

Static Public Member Functions inherited from cadex.DFMSheetMetal_SmallDistanceBetweenFeaturesIssue
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM sheet metal small distance issue.

static new cadex.DFMSheetMetal_SmallDistanceBetweenFeaturesIssue	Cast (cadex.MTKBase_Feature theBase)

Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.

static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes small distance detween holes issues found during sheet metal design analysis.

When designing sheet metal parts with multiple holes, it is important to consider the spacing between those holes. If the distance between the holes is small, the material between them will become thinner, which can cause the sheet metal part to become weaker and potentially break under stress. This is because the stress applied to the sheet metal part is not distributed evenly throughout the part, and the material between the holes is not strong enough to handle the load.

Contains simple holes, distance between which fails the following condition:

\[ \large Dist \geq T \times Rt \]

\[ \begin{aligned} & \small Dist - \text{actual distance between holes} \\ & \small T - \text{actual thickness} \\ & \small Rt - \text{expected minimum distance between holes to sheet thickness ratio} \end{aligned} \]

Note: This issue can contain only SheetMetal_Hole objects and NOT SheetMetal_ComplexHole. Because small distance between holes analysis carried out only for simple holes (SheetMetal_Hole).
