cadex.DFMSheetMetal_SmallDistanceBetweenNotchesIssue Class Reference

Describes small distance between notches issues found during sheet metal design analysis. More...

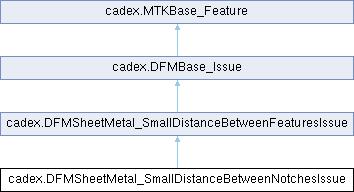

Inheritance diagram for cadex.DFMSheetMetal_SmallDistanceBetweenNotchesIssue:

Public Member Functions
	DFMSheetMetal_SmallDistanceBetweenNotchesIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
	DFMSheetMetal_SmallDistanceBetweenNotchesIssue ()
	Constructor.
	DFMSheetMetal_SmallDistanceBetweenNotchesIssue (cadex.SheetMetal_Notch theFirstNotch, cadex.SheetMetal_Notch theSecondNotch)
	Creates a small distance between notches issues from two SheetMetal_Notch objects.
cadex.SheetMetal_Notch	FirstNotch ()
	Returns the first problematic sheet metal notch.
void	SetFirstNotch (cadex.SheetMetal_Notch theNotch)
	Sets the first problematic sheet metal notch.
cadex.SheetMetal_Notch	SecondNotch ()
	Returns the second problematic sheet metal notch.
void	SetSecondNotch (cadex.SheetMetal_Notch theNotch)
	Sets the second problematic sheet metal notch.
Public Member Functions inherited from cadex.DFMSheetMetal_SmallDistanceBetweenFeaturesIssue
	DFMSheetMetal_SmallDistanceBetweenFeaturesIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
double	ExpectedMinDistanceBetweenFeaturesToSheetThicknessRatio ()
	Returns expected minimum distance between features to sheet thickness ratio.
void	SetExpectedMinDistanceBetweenFeaturesToSheetThicknessRatio (double theRatio)
	Sets expected distance between features to sheet thickness ratio.
double	ExpectedMinDistanceBetweenFeatures ()
	Returns expected minimum distance between features in mm .
double	ActualDistanceBetweenFeatures ()
	Returns the actual distance between features in mm .
void	SetActualDistanceBetweenFeatures (double theDistance)
	Sets the actual distance between features in mm.
double	ActualSheetThickness ()
	Returns the actual sheet thickness of analyzed part in mm .
void	SetActualSheetThickness (double theThickness)
	Sets the actual sheet thickness in mm.
Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
	Resets reference to implementation object.
bool	IsNull ()
	Returns true if the object is nullified.
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a small distance between notches issue.
static new cadex.DFMSheetMetal_SmallDistanceBetweenNotchesIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMSheetMetal_SmallDistanceBetweenFeaturesIssue
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM sheet metal small distance issue.
static new cadex.DFMSheetMetal_SmallDistanceBetweenFeaturesIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.
static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes small distance between notches issues found during sheet metal design analysis.

When the notches are placed too close together, it can weaken the overall structure of the sheet metal. This is because the material between the notches is relatively thin and therefore more susceptible to bending or breaking.

Contains notches, distance between which fails the following condition:

\[ \large Dist \geq T \times Rt \]

\[ \begin{aligned} & \small Dist - \text{actual distance between notches} \\ & \small T - \text{actual thickness} \\ & \small Rt - \text{expected minimum distance between notches to sheet thickness ratio} \end{aligned} \]

See also

DFMSheetMetal_Analyzer, DFMSheetMetal_AnalyzerParameters.MinDistanceBetweenNotchesToSheetThicknessRatio(), SheetMetal_Notch

Examples

sheet_metal/dfm_analyzer/Program.cs, and sheet_metal/dfm_analyzer/main.cxx.

Constructor & Destructor Documentation

DFMSheetMetal_SmallDistanceBetweenNotchesIssue() [1/2]

cadex.DFMSheetMetal_SmallDistanceBetweenNotchesIssue.DFMSheetMetal_SmallDistanceBetweenNotchesIssue ( )

inline

Constructor.

DFMSheetMetal_SmallDistanceBetweenNotchesIssue() [2/2]

cadex.DFMSheetMetal_SmallDistanceBetweenNotchesIssue.DFMSheetMetal_SmallDistanceBetweenNotchesIssue ( cadex.SheetMetal_Notch theFirstNotch, cadex.SheetMetal_Notch theSecondNotch )

inline

Creates a small distance between notches issues from two SheetMetal_Notch objects.

Constructor.

Member Function Documentation

CompareType()

static new bool cadex.DFMSheetMetal_SmallDistanceBetweenNotchesIssue.CompareType ( cadex.MTKBase_Feature theFeature )

inlinestatic

Returns true if theFeature is a small distance between notches issue.

Examples

sheet_metal/dfm_analyzer/Program.cs.

Dispose()

override void cadex.DFMSheetMetal_SmallDistanceBetweenNotchesIssue.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.DFMSheetMetal_SmallDistanceBetweenFeaturesIssue.

FirstNotch()

cadex.SheetMetal_Notch cadex.DFMSheetMetal_SmallDistanceBetweenNotchesIssue.FirstNotch ( )

inline

Returns the first problematic sheet metal notch.

See also

SetFirstNotch()

SecondNotch()

cadex.SheetMetal_Notch cadex.DFMSheetMetal_SmallDistanceBetweenNotchesIssue.SecondNotch ( )

inline

Returns the second problematic sheet metal notch.

See also

SetSecondNotch()

SetFirstNotch()

void cadex.DFMSheetMetal_SmallDistanceBetweenNotchesIssue.SetFirstNotch ( cadex.SheetMetal_Notch theNotch )

inline

Sets the first problematic sheet metal notch.

See also

FirstNotch()

SetSecondNotch()

void cadex.DFMSheetMetal_SmallDistanceBetweenNotchesIssue.SetSecondNotch ( cadex.SheetMetal_Notch theNotch )

inline

Sets the second problematic sheet metal notch.

See also

SecondNotch()
