cadex.DFMSheetMetal_SmallDistanceBetweenTabsIssue Class Reference

Describes small distance between tabs issues found during sheet metal design analysis. More...

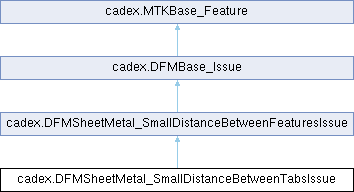

Inheritance diagram for cadex.DFMSheetMetal_SmallDistanceBetweenTabsIssue:

Public Member Functions
	DFMSheetMetal_SmallDistanceBetweenTabsIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
	DFMSheetMetal_SmallDistanceBetweenTabsIssue ()
	Constructor.
	DFMSheetMetal_SmallDistanceBetweenTabsIssue (cadex.SheetMetal_Tab theFirstTab, cadex.SheetMetal_Tab theSecondTab)
	Creates a small distance between tabs issues from two SheetMetal_Tab objects.
cadex.SheetMetal_Tab	FirstTab ()
	Returns the first problematic sheet metal tab.
void	SetFirstTab (cadex.SheetMetal_Tab theTab)
	Sets the first problematic sheet metal tab.
cadex.SheetMetal_Tab	SecondTab ()
	Returns the second problematic sheet metal tab.
void	SetSecondTab (cadex.SheetMetal_Tab theTab)
	Sets the second problematic sheet metal tab.
Public Member Functions inherited from cadex.DFMSheetMetal_SmallDistanceBetweenFeaturesIssue
	DFMSheetMetal_SmallDistanceBetweenFeaturesIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
double	ExpectedMinDistanceBetweenFeaturesToSheetThicknessRatio ()
	Returns expected minimum distance between features to sheet thickness ratio.
void	SetExpectedMinDistanceBetweenFeaturesToSheetThicknessRatio (double theRatio)
	Sets expected distance between features to sheet thickness ratio.
double	ExpectedMinDistanceBetweenFeatures ()
	Returns expected minimum distance between features in mm .
double	ActualDistanceBetweenFeatures ()
	Returns the actual distance between features in mm .
void	SetActualDistanceBetweenFeatures (double theDistance)
	Sets the actual distance between features in mm.
double	ActualSheetThickness ()
	Returns the actual sheet thickness of analyzed part in mm .
void	SetActualSheetThickness (double theThickness)
	Sets the actual sheet thickness in mm.
Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
	Resets reference to implementation object.
bool	IsNull ()
	Returns true if the object is nullified.
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a small distance between tabs issue.
static new cadex.DFMSheetMetal_SmallDistanceBetweenTabsIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMSheetMetal_SmallDistanceBetweenFeaturesIssue
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM sheet metal small distance issue.
static new cadex.DFMSheetMetal_SmallDistanceBetweenFeaturesIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.
static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes small distance between tabs issues found during sheet metal design analysis.

When the tabs are too close together, they may interfere with each other and prevent the parts from properly fitting together. Additionally, if there is not enough clearance between the tabs, it may be difficult or impossible to bend or form the metal during fabrication. This can cause manufacturing delays or may even require design changes to be made.

Contains tabs, distance between which fails the following condition:

\[ \large Dist \geq T \times Rt \]

\[ \begin{aligned} & \small Dist - \text{actual distance between tabs} \\ & \small T - \text{actual thickness} \\ & \small Rt - \text{expected minimum distance between tabs to sheet thickness ratio} \end{aligned} \]

See also

DFMSheetMetal_Analyzer, DFMSheetMetal_AnalyzerParameters.MinDistanceBetweenTabsToSheetThicknessRatio(), SheetMetal_Tab

Examples

sheet_metal/dfm_analyzer/Program.cs, and sheet_metal/dfm_analyzer/main.cxx.

Constructor & Destructor Documentation

DFMSheetMetal_SmallDistanceBetweenTabsIssue() [1/2]

cadex.DFMSheetMetal_SmallDistanceBetweenTabsIssue.DFMSheetMetal_SmallDistanceBetweenTabsIssue ( )

inline

Constructor.

DFMSheetMetal_SmallDistanceBetweenTabsIssue() [2/2]

cadex.DFMSheetMetal_SmallDistanceBetweenTabsIssue.DFMSheetMetal_SmallDistanceBetweenTabsIssue ( cadex.SheetMetal_Tab theFirstTab, cadex.SheetMetal_Tab theSecondTab )

inline

Creates a small distance between tabs issues from two SheetMetal_Tab objects.

Constructor.

Member Function Documentation

CompareType()

static new bool cadex.DFMSheetMetal_SmallDistanceBetweenTabsIssue.CompareType ( cadex.MTKBase_Feature theFeature )

inlinestatic

Returns true if theFeature is a small distance between tabs issue.

Examples

sheet_metal/dfm_analyzer/Program.cs.

Dispose()

override void cadex.DFMSheetMetal_SmallDistanceBetweenTabsIssue.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.DFMSheetMetal_SmallDistanceBetweenFeaturesIssue.

FirstTab()

cadex.SheetMetal_Tab cadex.DFMSheetMetal_SmallDistanceBetweenTabsIssue.FirstTab ( )

inline

Returns the first problematic sheet metal tab.

See also

SetFirstTab()

SecondTab()

cadex.SheetMetal_Tab cadex.DFMSheetMetal_SmallDistanceBetweenTabsIssue.SecondTab ( )

inline

Returns the second problematic sheet metal tab.

See also

SetSecondTab()

SetFirstTab()

void cadex.DFMSheetMetal_SmallDistanceBetweenTabsIssue.SetFirstTab ( cadex.SheetMetal_Tab theTab )

inline

Sets the first problematic sheet metal tab.

See also

FirstTab()

SetSecondTab()

void cadex.DFMSheetMetal_SmallDistanceBetweenTabsIssue.SetSecondTab ( cadex.SheetMetal_Tab theTab )

inline

Sets the second problematic sheet metal tab.

See also

SecondTab()
