cadex::ModelData::Body Class Reference

Provides a base body class. More...

#include <cadex/ModelData/Body.hxx>

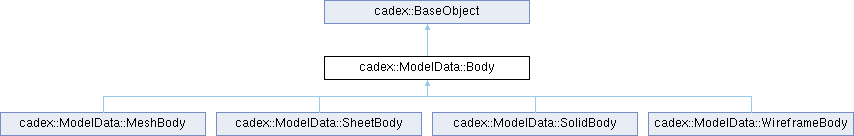

Inheritance diagram for cadex::ModelData::Body:

Public Member Functions
void	SetName (const UTF16String &theName)
UTF16String	Name () const
Public Member Functions inherited from cadex::BaseObject
size_t	Id () const
	Return unique identifier of public object.
internal::BaseObjectImpl *	Impl () const
bool	IsNull () const
	operator bool () const
template<typename T >
bool	IsOfType () const
template<typename T >
T *	Impl () const
	Reserved for internal use.

Static Public Member Functions
static bool	CompareType (const BaseObject &theObject)

Protected Member Functions
	Body (const ImplType &theImpl)
Protected Member Functions inherited from cadex::BaseObject
	BaseObject (const ImplType &theImpl)

Additional Inherited Members
Public Types inherited from cadex::BaseObject
typedef std::shared_ptr< internal::BaseObjectImpl >	ImplType

Detailed Description

Provides a base body class.

See also

SolidBody, SheetBody, WireframeBody, MeshBody

Examples

MTKConverter/Program.cs, helpers/shape_processor.cs, machining/dfm_analyzer/Program.cs, machining/feature_recognizer/Program.cs, molding/dfm_analyzer/Program.cs, molding/feature_recognizer/Program.cs, sheet_metal/dfm_analyzer/Program.cs, sheet_metal/feature_recognizer/Program.cs, and sheet_metal/unfolder/Program.cs.
