cadex.DFMSheetMetal_IrregularDepthExtrudedHoleIssue Class Reference

Describes irregular depth extruded hole issue found during sheet metal design analysis. More...

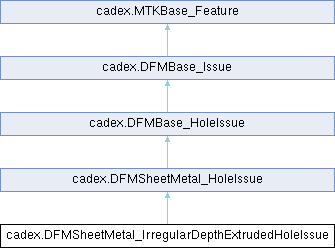

Inheritance diagram for cadex.DFMSheetMetal_IrregularDepthExtrudedHoleIssue:

Public Member Functions
	DFMSheetMetal_IrregularDepthExtrudedHoleIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
	DFMSheetMetal_IrregularDepthExtrudedHoleIssue ()
	Constructor.
	DFMSheetMetal_IrregularDepthExtrudedHoleIssue (cadex.SheetMetal_ComplexHole theHole)
	Creates an extruded hole with irregular depth issue from SheetMetal_ComplexHole object.
double	ExpectedMinExtrudedHeightToSheetThicknessRatio ()
	Returns the expected minimum extrude height to sheet thickness ratio.
void	SetExpectedMinExtrudedHeightToSheetThicknessRatio (double theRatio)
	Sets the expected minimum extrude height to sheet thickness ratio.
double	ExpectedMaxExtrudedHeightToInnerDiameterRatio ()
	Returns the expected maximum extrude height to inner diameter ratio.
void	SetExpectedMaxExtrudedHeightToInnerDiameterRatio (double theRatio)
	Sets the expected maximum extrude height to inner diameter ratio.
double	ExpectedMinExtrudedHeight ()
	Returns expected minimum hole extrude height in mm .
double	ExpectedMaxExtrudedHeight ()
	Returns expected maximum hole extrude height in mm .
double	ActualExtrudedHeight ()
	Returns actual hole extrude height in mm .
Public Member Functions inherited from cadex.DFMSheetMetal_HoleIssue
	DFMSheetMetal_HoleIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
cadex.SheetMetal_Hole	SheetMetalHole ()
	Returns the problematic sheet metal hole.
double	ActualSheetThickness ()
	Returns the actual sheet thickness of analyzed part in mm .
void	SetActualSheetThickness (double theThickness)
	Sets the actual sheet thickness in mm. theThickness should be greater than zero.
Public Member Functions inherited from cadex.DFMBase_HoleIssue
	DFMBase_HoleIssue (global::System.IntPtr cPtr, bool cMemoryOwn)
cadex.MTKBase_Hole	Hole ()
	Returns the problematic hole.
void	SetHole (cadex.MTKBase_Hole theHole)
	Sets the problematic hole.
Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)
Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
	MTKBase_Feature ()
	Constructor.
void	Nullify ()
	Resets reference to implementation object.
bool	IsNull ()
	Returns true if the object is nullified.
bool	IsEqual (cadex.MTKBase_Feature theObject)
bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a irregular depth extruded hole issue.
static new cadex.DFMSheetMetal_IrregularDepthExtrudedHoleIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMSheetMetal_HoleIssue
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM sheet metal hole issue.
static new cadex.DFMSheetMetal_HoleIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMBase_HoleIssue
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM hole issue.
static new cadex.DFMBase_HoleIssue	Cast (cadex.MTKBase_Feature theBase)
Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.
static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes irregular depth extruded hole issue found during sheet metal design analysis.

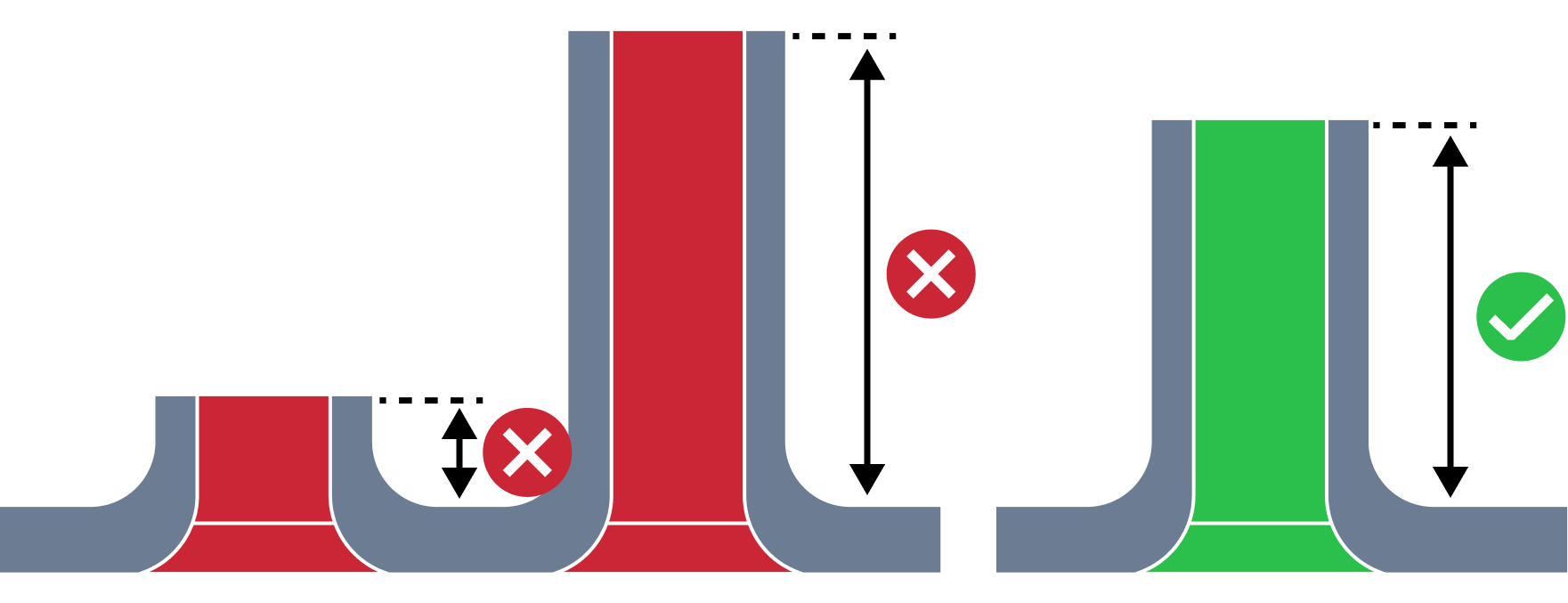

Irregular Depth Extruded Hole issue in sheet metal refers to a problem where the depth of an extruded hole is not consistent or uniform. This issue can bring about a weakened structure, compromised integrity, and difficulties in assembly.

Contains complex hole that fails one of the following conditions:

\[ \large ExtrH_h \geq T \times Rt \]

\[ \begin{aligned} & \small ExtrH_h - \text{analyzed hole extrude height} \\ & \small T - \text{thickness of analyzed sheet} \\ & \small Rt - \text{minimum hole extruded height to sheet thickness ratio} \end{aligned} \]

\[ \large ExtrH_h \leq ID \times Rt \]

\[ \begin{aligned} & \small ExtrH_h - \text{analyzed hole extrude height} \\ & \small ID - \text{analyzed hole inner diameter} \\ & \small Rt - \text{maximum hole extrude height to inner diameter ratio} \end{aligned} \]

See also

DFMSheetMetal_Analyzer, DFMSheetMetal_AnalyzerParameters.MinHoleExtrudedHeightToSheetThicknessRatio(), DFMSheetMetal_AnalyzerParameters.MaxHoleExtrudedHeightToInnerDiameterRatio(), SheetMetal_ComplexHole

Examples

sheet_metal/dfm_analyzer/Program.cs, and sheet_metal/dfm_analyzer/main.cxx.

Constructor & Destructor Documentation

DFMSheetMetal_IrregularDepthExtrudedHoleIssue() [1/2]

cadex.DFMSheetMetal_IrregularDepthExtrudedHoleIssue.DFMSheetMetal_IrregularDepthExtrudedHoleIssue ( )

inline

Constructor.

DFMSheetMetal_IrregularDepthExtrudedHoleIssue() [2/2]

cadex.DFMSheetMetal_IrregularDepthExtrudedHoleIssue.DFMSheetMetal_IrregularDepthExtrudedHoleIssue ( cadex.SheetMetal_ComplexHole theHole )

inline

Creates an extruded hole with irregular depth issue from SheetMetal_ComplexHole object.

Constructor.

Member Function Documentation

ActualExtrudedHeight()

double cadex.DFMSheetMetal_IrregularDepthExtrudedHoleIssue.ActualExtrudedHeight ( )

inline

Returns actual hole extrude height in mm .

See also

Hole()

Examples

sheet_metal/dfm_analyzer/Program.cs.

CompareType()

static new bool cadex.DFMSheetMetal_IrregularDepthExtrudedHoleIssue.CompareType ( cadex.MTKBase_Feature theFeature )

inlinestatic

Returns true if theFeature is a irregular depth extruded hole issue.

Examples

sheet_metal/dfm_analyzer/Program.cs.

Dispose()

override void cadex.DFMSheetMetal_IrregularDepthExtrudedHoleIssue.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.DFMSheetMetal_HoleIssue.

ExpectedMaxExtrudedHeight()

double cadex.DFMSheetMetal_IrregularDepthExtrudedHoleIssue.ExpectedMaxExtrudedHeight ( )

inline

Returns expected maximum hole extrude height in mm .

\[ \large EH_e = T \times Rt \]

\[ \begin{aligned} & \small EH_e - \text{expected maximum hole extrude height} \\ & \small ID - \text{hole inner diameter} \\ & \small Rt - \text{expected maximum hole extrude height to inner diameter ratio} \end{aligned} \]

See also

ExpectedMaxExtrudedHeightToInnerDiameterRatio(), MTKBase_Hole.Radius()

Examples

sheet_metal/dfm_analyzer/Program.cs.

ExpectedMaxExtrudedHeightToInnerDiameterRatio()

double cadex.DFMSheetMetal_IrregularDepthExtrudedHoleIssue.ExpectedMaxExtrudedHeightToInnerDiameterRatio ( )

inline

Returns the expected maximum extrude height to inner diameter ratio.

See also

SetExpectedMaxExtrudedHeightToInnerDiameterRatio(), DFMSheetMetal_AnalyzerParameters.MaxExtrudedHeightToInnerDiameterRatio()

ExpectedMinExtrudedHeight()

double cadex.DFMSheetMetal_IrregularDepthExtrudedHoleIssue.ExpectedMinExtrudedHeight ( )

inline

Returns expected minimum hole extrude height in mm .

\[ \large EH_e = T \times Rt \]

\[ \begin{aligned} & \small EH_e - \text{expected minimum hole extrude height} \\ & \small T - \text{actual sheet thickness} \\ & \small Rt - \text{expected minimum extrude height to sheet thickness ratio} \end{aligned} \]

See also

ExpectedMinExtrudedHeightToSheetThicknessRatio(), ActualSheetThickness()

Examples

sheet_metal/dfm_analyzer/Program.cs.

ExpectedMinExtrudedHeightToSheetThicknessRatio()

double cadex.DFMSheetMetal_IrregularDepthExtrudedHoleIssue.ExpectedMinExtrudedHeightToSheetThicknessRatio ( )

inline

Returns the expected minimum extrude height to sheet thickness ratio.

See also

SetExpectedMinExtrudedHeightToSheetThicknessRatio, DFMSheetMetal_AnalyzerParameters.MinExtrudedHeightToSheetThicknessRatio()

SetExpectedMaxExtrudedHeightToInnerDiameterRatio()

void cadex.DFMSheetMetal_IrregularDepthExtrudedHoleIssue.SetExpectedMaxExtrudedHeightToInnerDiameterRatio ( double theRatio )

inline

Sets the expected maximum extrude height to inner diameter ratio.

theRatio should be greater than zero.

See also

ExpectedMaxExtrudedHeightToInnerDiameterRatio()

SetExpectedMinExtrudedHeightToSheetThicknessRatio()

void cadex.DFMSheetMetal_IrregularDepthExtrudedHoleIssue.SetExpectedMinExtrudedHeightToSheetThicknessRatio ( double theRatio )

inline

Sets the expected minimum extrude height to sheet thickness ratio.

theRatio should be greater than zero.

See also

ExpectedMaxDepthToSheetThicknessRatio()
