cadex.ModelData.ModelElement Class Reference

Base class for part, instance and assembly. More...

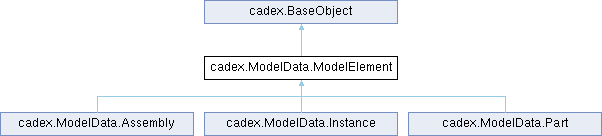

Inheritance diagram for cadex.ModelData.ModelElement:

Public Member Functions
	ModelElement (global::System.IntPtr cPtr, bool cMemoryOwn)
void	SetName (cadex.UTF16String theName)
	Accepts a string as a unicode string.
cadex.UTF16String	Name ()
	Returns empty string if the model element has no name (by default).
void	SetUuid (System.Guid theUuid)
	Sets an object uuid.
System.Guid	Uuid ()
	Returns an object uuid.
void	SetPMI (cadex.PMI.Data thePMI)
	Sets the object PMI.
cadex.PMI.Data	PMI ()
	Returns the object PMI.
void	Accept (cadex.ModelData.ModelElementVisitor theVisitor)
	The order of visiting depends on the type of this object:
Public Member Functions inherited from cadex.BaseObject
	BaseObject (global::System.IntPtr cPtr, bool cMemoryOwn)
void	Dispose ()
bool	IsNull ()
ulong	Id ()
	Return unique identifier of public object.
bool	IsEqual (cadex.BaseObject theObj)
override int	GetHashCode ()
override bool	Equals (System.Object o)

Static Public Member Functions
static bool	CompareType (cadex.BaseObject theObject)
	Returns true if theObject is a model element.
static cadex.ModelData.ModelElement	Cast (cadex.BaseObject theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Base class for part, instance and assembly.

Examples

exploring/bom/Program.cs, exploring/bom/main.cxx, exploring/pmi/Program.cs, and exploring/pmi/main.cxx.

Member Function Documentation

Accept()

void cadex.ModelData.ModelElement.Accept ( cadex.ModelData.ModelElementVisitor theVisitor )

inline

The order of visiting depends on the type of this object:

• for a part invokes a visitor for the part (ModelData.ModelElementVisitor.operator());
• for an instance first enters the instance by calling ModelData.ModelElementVisitor.VisitEnter()). If it returns true then visits the referred element. Then leaves the instance calling ModelData.ModelElementVisitor.VisitLeave().
• for an assembly first enters the assembly by calling ModelData.ModelElementVisitor.VisitEnter()). If it returns true then visits all the assembly children. Then leaves the assembly calling ModelData.ModelElementVisitor.VisitLeave(). Accepts an element visitor.

CompareType()

static bool cadex.ModelData.ModelElement.CompareType ( cadex.BaseObject theObject )

inlinestatic

Returns true if theObject is a model element.

Dispose()

override void cadex.ModelData.ModelElement.Dispose ( bool disposing )

inlineprotectedvirtual

Reimplemented from cadex.BaseObject.

Name()

cadex.UTF16String cadex.ModelData.ModelElement.Name ( )

inline

Returns empty string if the model element has no name (by default).

See also

SetName(). Returns a name.

Examples

MTKConverter/Program.cs, MTKConverter/main.cxx, exploring/bom/Program.cs, exploring/bom/main.cxx, exploring/brep_geometry/Program.cs, exploring/brep_geometry/main.cxx, exploring/brep_topology/Program.cs, exploring/brep_topology/main.cxx, exploring/mesh/main.cxx, exploring/pmi/Program.cs, exploring/pmi/main.cxx, helpers/shape_processor.cs, helpers/shape_processor.hxx, machining/dfm_analyzer/Program.cs, machining/dfm_analyzer/main.cxx, machining/feature_recognizer/Program.cs, machining/feature_recognizer/main.cxx, molding/dfm_analyzer/Program.cs, molding/dfm_analyzer/main.cxx, molding/feature_recognizer/Program.cs, molding/feature_recognizer/main.cxx, projector/poly_projector/Program.cs, projector/poly_projector/main.cxx, sheet_metal/dfm_analyzer/Program.cs, sheet_metal/dfm_analyzer/main.cxx, sheet_metal/feature_recognizer/Program.cs, sheet_metal/feature_recognizer/main.cxx, sheet_metal/unfolder/Program.cs, and sheet_metal/unfolder/main.cxx.

PMI()

cadex.PMI.Data cadex.ModelData.ModelElement.PMI ( )

inline

Returns the object PMI.

Examples

exploring/pmi/Program.cs, and exploring/pmi/main.cxx.

SetName()

void cadex.ModelData.ModelElement.SetName ( cadex.UTF16String theName )

inline

Accepts a string as a unicode string.

See also

Name(). Sets a name.

SetPMI()

void cadex.ModelData.ModelElement.SetPMI ( cadex.PMI.Data thePMI )

inline

Sets the object PMI.

SetUuid()

void cadex.ModelData.ModelElement.SetUuid ( System.Guid theUuid )

inline

Sets an object uuid.

Examples

MTKConverter/Program.cs.

Uuid()

System.Guid cadex.ModelData.ModelElement.Uuid ( )

inline

Returns an object uuid.

Examples

MTKConverter/Program.cs, and MTKConverter/main.cxx.
