Describes inconsistent radius bend issues found during sheet metal design analysis. More...

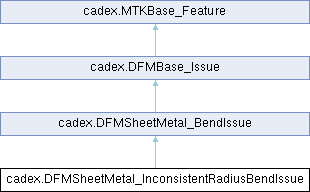

Inheritance diagram for cadex.DFMSheetMetal_InconsistentRadiusBendIssue:

Public Member Functions
	DFMSheetMetal_InconsistentRadiusBendIssue (global::System.IntPtr cPtr, bool cMemoryOwn)

	DFMSheetMetal_InconsistentRadiusBendIssue ()
	Constructor.

	DFMSheetMetal_InconsistentRadiusBendIssue (cadex.SheetMetal_Bend theBend)
	Creates a inconsistent bend issue from the SheetMetal_Bend object.

double	ExpectedRadius ()
	Returns the expected radius in mm .

void	SetExpectedRadius (double theRadius)
	Sets the expected radius in mm.

double	ActualRadius ()
	Returns the actual bend radius in mm .

Public Member Functions inherited from cadex.DFMSheetMetal_BendIssue
	DFMSheetMetal_BendIssue (global::System.IntPtr cPtr, bool cMemoryOwn)

cadex.SheetMetal_Bend	Bend ()
	Returns the problematic sheet metal bend.

void	SetBend (cadex.SheetMetal_Bend theBend)
	Sets the problematic sheet metal bend.

double	ActualSheetThickness ()
	Returns the actual sheet thickness of analyzed part in mm .

void	SetActualSheetThickness (double theThickness)
	Sets the actual sheet thickness in mm .

Public Member Functions inherited from cadex.DFMBase_Issue
	DFMBase_Issue (global::System.IntPtr cPtr, bool cMemoryOwn)

Public Member Functions inherited from cadex.MTKBase_Feature
	MTKBase_Feature (global::System.IntPtr cPtr, bool cMemoryOwn)

void	Dispose ()

	MTKBase_Feature ()
	Constructor.

void	Nullify ()
	Resets reference to implementation object.

bool	IsNull ()
	Returns true if the object is nullified.

bool	IsEqual (cadex.MTKBase_Feature theObject)

bool	IsNotEqual (cadex.MTKBase_Feature theObject)

Static Public Member Functions
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM sheet metal inconsistent radius bend issue.

static new cadex.DFMSheetMetal_InconsistentRadiusBendIssue	Cast (cadex.MTKBase_Feature theBase)

Static Public Member Functions inherited from cadex.DFMSheetMetal_BendIssue
static new bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returns true if theFeature is a DFM sheet metal bend issue.

static new cadex.DFMSheetMetal_BendIssue	Cast (cadex.MTKBase_Feature theBase)

Static Public Member Functions inherited from cadex.DFMBase_Issue
static bool	CompareType (cadex.MTKBase_Feature theFeature)
	Returnstrue if theFeature is a DFM issue.

static cadex.DFMBase_Issue	Cast (cadex.MTKBase_Feature theBase)

Protected Member Functions
override void	Dispose (bool disposing)

Detailed Description

Describes inconsistent radius bend issues found during sheet metal design analysis.

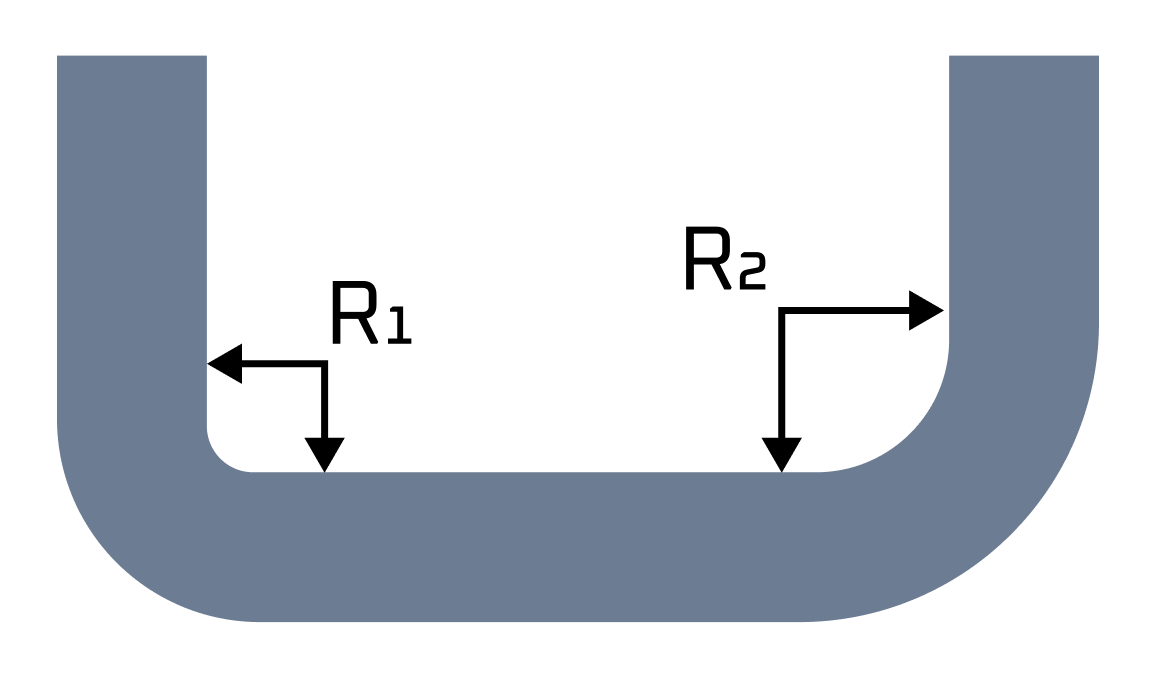

This issue occurs when the radius of a bend varies from one section to another, resulting in uneven distribution of stress and strain in the part. Avoiding variety in bend radii help to minimize setup changes during the manufacturing process. When the bend radius is consistent, the machine settings can be standardized, which means that less time will be spent making adjustments between parts. This can help to reduce production time and costs, as well as improve the overall quality of the finished product.

Note: This issue can contain only SheetMetal_Bend objects and NOT SheetMetal_HemBend or SheetMetal_CurvedBend. Because inconsistent radius bend analysis carried out only for simple bends (SheetMetal_Bend) and simple bends inside compound bends (SheetMetal_CompoundBend.FeatureList()).
